This Newly Designed all Stainless Steel Triple Stage Heat Exchange System will give you quicker, longer lasting commercial rated heat to perform the most challenging of carpet cleaning jobs.
Our Blue Barons Truck Mount Carpet & Tile Cleaning Machines New Design Heat Exchangers,captures Heat Energy which uitilizes the Engine's Exhaust Gases by a method called Axis Point Technology TM.This feature not only makes the water solution Temperatures very hot and stable up to (240 Plus degrees F), but will save you money not purchasing alternative fuels. All our units are Equipt with Auto-Temperature Control as well Exhaust Diversion.

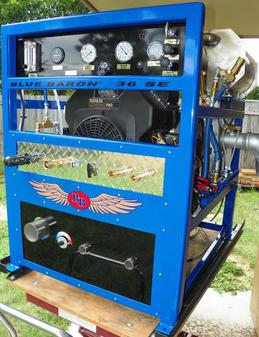

The Model 36 SE has the same many extras as the larger Models, but can still give those Big Machine results. Because all our Truck Mounts are Designed with a 'FREE FLOW Vacuum System', Maximum CFM and water recovery can be achieved. Unlike other Manufacturers using similiar size Engine and Blowers need to overcompensate by using larger components to overcome narrowing Airways and obstructions like Blower Pre-Heaters.
All our Blue Barons have a Heavy Duty Double Groove Pulley Belt System using Cog BX Series Belts for True Gripping Power. This gives you maximum Vacuum Suction and Power Transfer from the engine to the blower.
This Machine is Powered with a 23.5 HP Kohler Engine and 3LR Sutorbilt Blower, will give you 344 CFM of Vacuum and unstopable Heat to do many residential / commercial jobs.
23.5 HP Kohler Engine V-Twin Command Pro (3 Year Warranty on parts & labor)
(with Low oil Shut Down) Best in small engines over 10,000 Service dealers worldwide Electronic Key Start
All Stainless Exhaust Header (INCLUDES TINY TACH / HOUR METER)

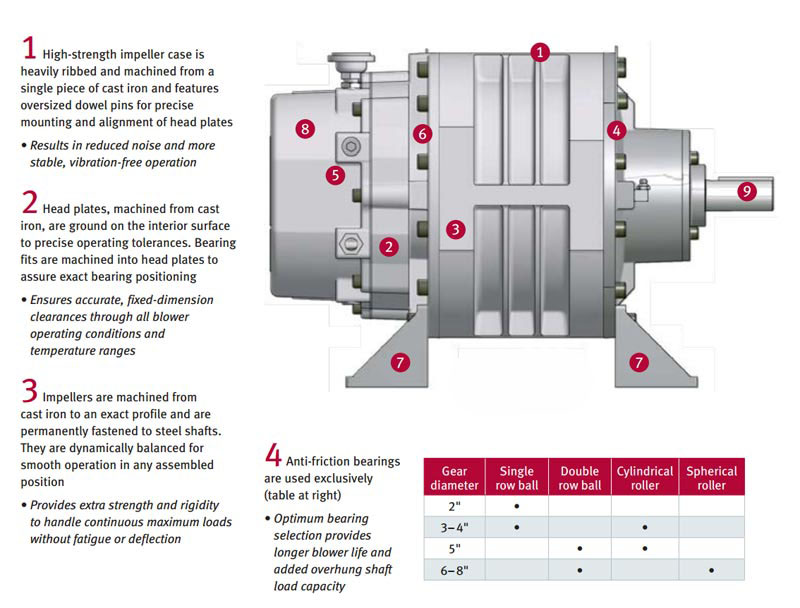

3LR Sutorbilt Blower 377 CFM and 15 Hg (Max) Vacuum Lift and can use up to 400 Ft. of Hose.
(18 month Warranty on parts & Labor)
Universal Silencer for noise reduction to block out the High attenuations of sound.

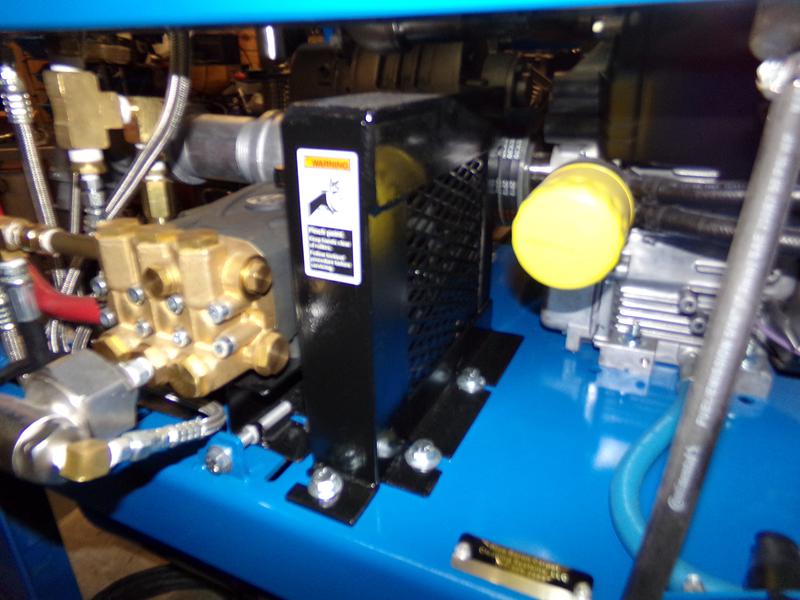

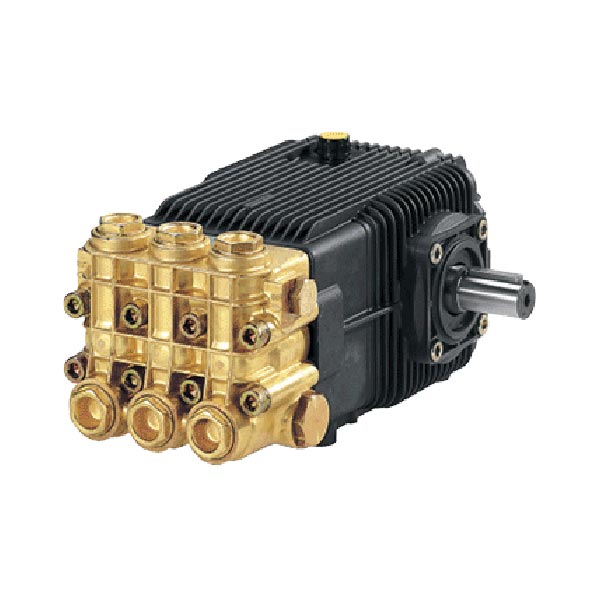

AR 3 Plunger Pump
Can withstand High Temperatures and Operates up to 3000 psi 3.5 GPM
Making this a Multi Purpose Machine (1 Year Warranty)
(Optional Pump Clutch Available)
Last Step Chemical Metered Injection System (To Protect your machine's Pump & Heating System).
All Stainless "State of the Art" Patented SUPER QUAD AXIS POINT TM Heat Exchanger System Produces 220 Degrees F
120 FT. of 3500 psi rated Stainless Tubing Also Great for Pressure Washing. (Optional Exhaust Diverter) (1 Year Warranty)
100 Gallon Heavy Gauge Marine Aluminum Recovery Tank with auto over-fill shut off, Vacuum Relief, Auto- overfill Shut-off, Gate Valve Drain, Debris Basket. Optional accessory Pump-out Ports and EZ Flow filter to protect your blower.
(LifeTime Warranty) Optional 60 Gallon Tank available
Aujustable Temperature Control & Hi- limit Control Regulation will give you the Security of Constant Heat without the worry of overheating even while the machine is running and no carpet cleaning is being performed (time talking to your Customers, Pre-Spraying, moving furniture, Etc.
Complete User Friendly Upper & Lower Control Panels
Preheated Water Box Reservoir Tank for Water Pump System (Great for Winterizing your machine)
100 ft. of 2" Crush Proof Vacuum Hose
100 ft. of 4000 psi Solution Hose
Stainless Steel Dual Jet Wand
*(NEW) Inline Filter Box Attachable (Side Mount)
All sturdy 11 Gauge Steel Construction Frame
30" Wide X 38" X 40" Depth
Console weight: 600 lbs.
Battery

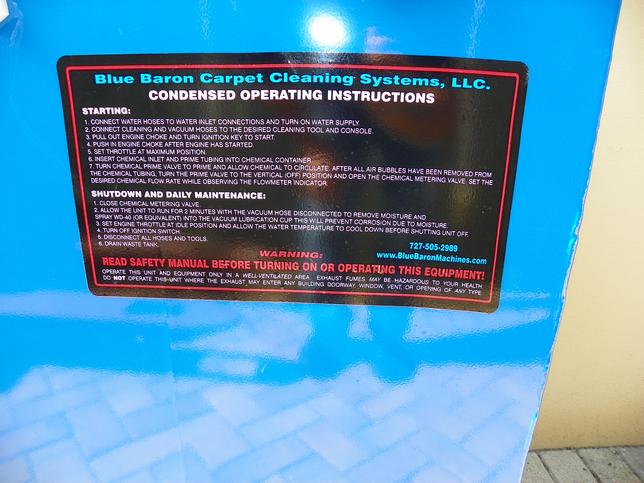

Operational Manual & Flash Drive (Video)
Free Expert Training
(Optional)
